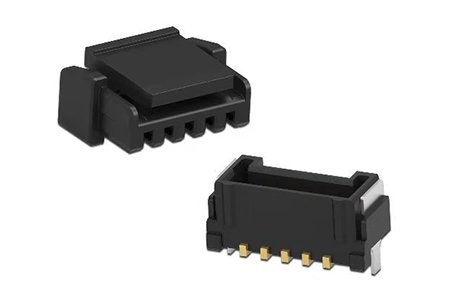

The 1.25-mm compact locking HPI connector is suitable for signal transmission within devices or in low-power applications. With its smaller size (saving up to 20% of PCB space*) and higher current-carrying capacity (up to 3 times*), this connector offers greater design flexibility. The external locking mechanism ensures a secure connection and prevents accidental disconnection, thereby enhancing the reliability of the interconnect system. This series of connectors meets the needs of slim-profile applications requiring reliable, secure wire-to-board signal or low-power connections.

      Key Advantages
      • Optional additional board latches provide exceptional PCB retention strength, making them particularly suitable for high-vibration environments
      • Wide forward-facing latches enhance the connection strength between the plug assembly and the receptacle
      • Provides clear audible and tactile feedback upon mating
      • The locking mechanism effectively prevents accidental disconnection due to pulling
      • *Helps optimize printed circuit board space, saving up to 20%
      • *Current-carrying capacity increased by up to 3 times
      • Available in a variety of configurations from 2 to 16 pins
      • Maximum current up to 3.6A
      • Operating temperature range: -40°C to +125°C
      • Multiple gold plating options available

      Typical Application
      • Smart Home: Smart door locks, small appliances, LED lighting
      • IoT Devices: Smart meters, security cameras, drones
      • Automotive Electronics: Multifunction steering wheels, in-vehicle entertainment systems, rearview mirrors
      • Industrial Applications: Factory automation, robots, monitoring and security systems


      *TE Connectivity and WELTRONICS make no warranties regarding the accuracy or completeness of this information and assume no liability for its use.
