The output voltage level changes when this IC detects the intensity level of magnetic flux density and a polarity change. Using this IC with a magnet makes it possible to detect the rotational speed and direction in various devices.

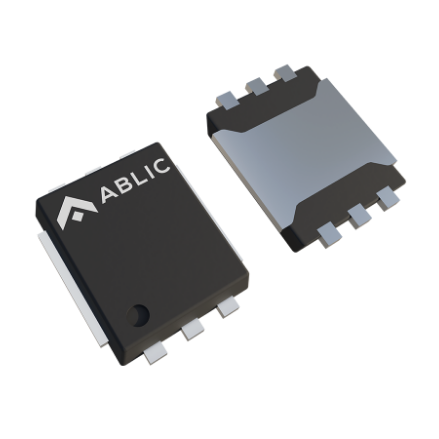

Uses a small SOT-23-5 package or ultra-thin (t0.50 mm max.) HSNT-6(2025) package, allowing for device high-density mounting.

Magnetic simulation service
ABLIC Inc. offers a “magnetic simulation service” that provides the ideal combination of magnets and our magnetic sensor ICs for customer systems. Our magnetic simulation service will reduce prototype production, development period and development costs. In addition, it will contribute to optimization of parts to realize high cost performance.
For more information regarding our magnetic simulation service, refer to “Introduction of Magnetic Simulation Service.”

Applications

Household appliances

Industrial motor-related equipment

Industrial equipment

Residential equipment
